Chengdu Yanlord Landmark2013-12-05Chengdu Yanlord Landmark



仁恒置地广场是中国西部第一大城市成都的地标建筑,建筑师为美国NBBJ的TIM JOHNSON,建筑立意取材于成都周边的山峰、页岩、瀑布、流水,照明设计主要通过对塔楼黄色阳台、银色玻璃翼以及裙楼表皮和凸起等四个主要节点的照明,勾勒出建筑丰满的夜间形象,阳台部分暖色灯光到玻璃翼、裙楼的冷色光对比强烈、过渡自然,制造出梦幻般的视觉效果,在近人尺度上,主要通过墙面布光,下照筒灯、投光灯,照树灯和树上悬挂照明,地面水蓝色线形埋地灯,形成入口和广场的光空间,从行人的角度来看,均匀的基础照明和有节奏的重点照明相映成趣。
Yanlord Landmark is the landmark building of Chengdu--the biggest city in West China, which is designed by Tim Johnson of American NBBJ. The design is based on the mountains, shale, waterfalls and rivers surrounding Chengdu. With the illumination of four major nodes: the yellow turret balcony, silver glass wings, annex surface and embossment, the illumination design reflects the plumb night image of the building. From the warm light on the balcony to the cold light on the annex, the colors contrasts sharply with natural transition, creating a fantastic visual effect. Ergonomically, wall lighting is major illumination ways, with tube light, spot light, tree lighting, hanging-on-tree lighting and ground blue linear underground lamp, creating the light space in the entrance and the square. In the perspective of passengers, the uniform basic lighting and rhythmic accent lighting contrast finely with each other.

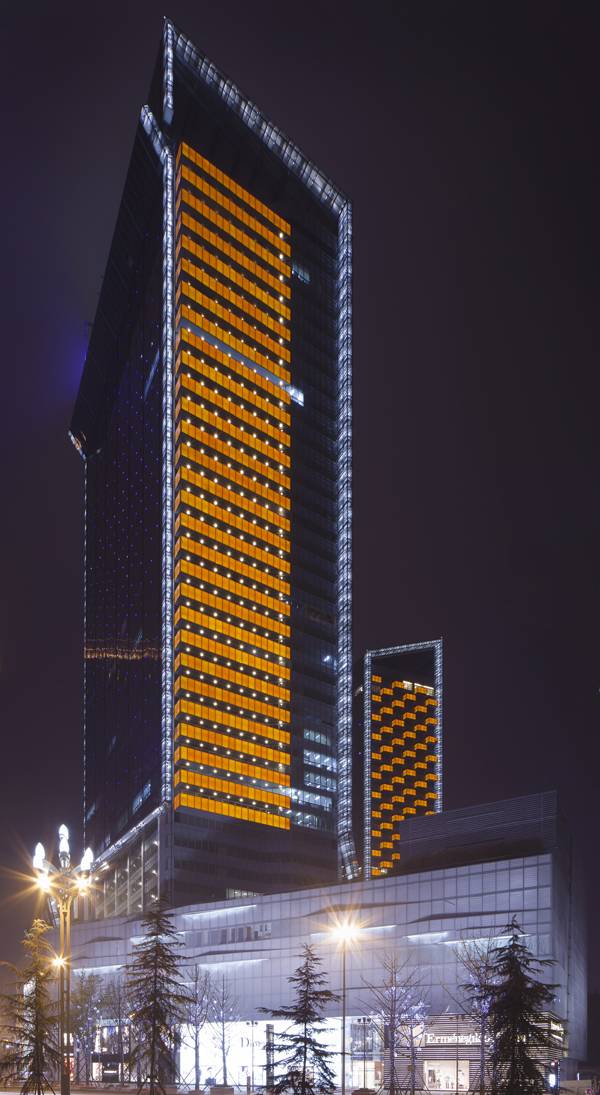

天色刚刚暗下来时,从建筑的东北方向观景平台看到的建筑全貌,重点是建筑清晰的轮廓和丰满的形象
When the nightfall comes, the full architectural view can be seen from the sightseeing platform in the northeast of the building, mainly showing the clear outline and plump image of the building.

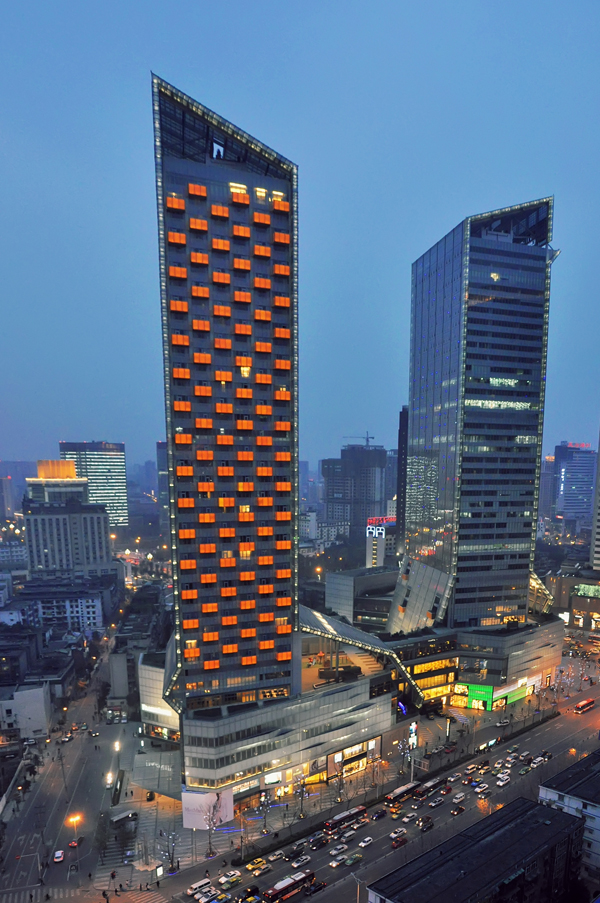

建筑西南方向道路看到的建筑全貌,近处A座塔楼阳台圆形吸顶灯和连续阳台立面橙色洗灯配合玻璃翼内的蓝白色连续泛光灯,远处B座塔楼有节奏的阳台照明和玻璃翼内的蓝白色连续泛光灯,底部裙楼冷色灯光,三个部分灯光既有变化而又和谐统一,共同构成建筑的整体夜景。
The full architectural view which can be get from the road in the southwest of the building is: the round ceiling lamps of turret balcony of nearby Building A and the façade orange washer lights of the continuous balcony which act in concert with the blue white continuous floodlights in the glass wings, the rhythmic balcony lighting of the distant turret of Building B and the blue white continuous floodlights in the glass wings, and the cold light of the bottom annex. The light of the three parts vary but unite harmoniously, forming the whole night scene of the buildings together.

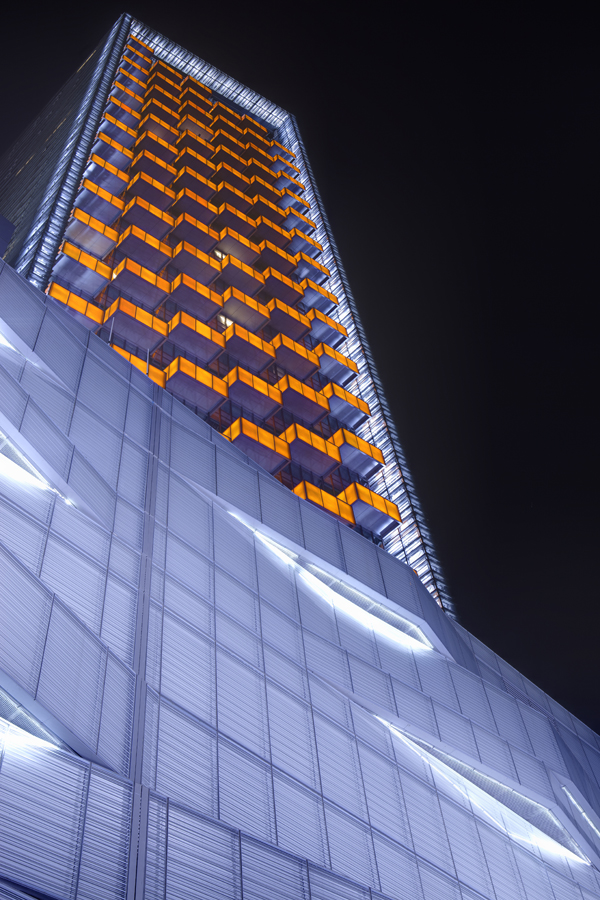

在入口广场向上看建筑的主体,裙楼泛光、裙楼凸起T5灯槽,塔楼翼部连续泛光灯、塔楼阳台橙色连续洗灯四个主要节点效果清晰可见
Looking up the main body from the square in the entrance, the effect of four major nodes, i.e. the floodlights of the annex, T5 light slots of annex embossment, continuous floodlights of the turret wing and the orange continuous washer lights of the turret balcony, should be very clear.

近处看塔楼背面翼部连续泛光灯
The continuous floodlights of the back wing part of the turret can be seen at close range.

近处看塔楼正面翼部连续泛光灯和阳台洗灯
The continuous floodlights of the front wing part of the turret and balcony washer lights can be seen from nearby place.

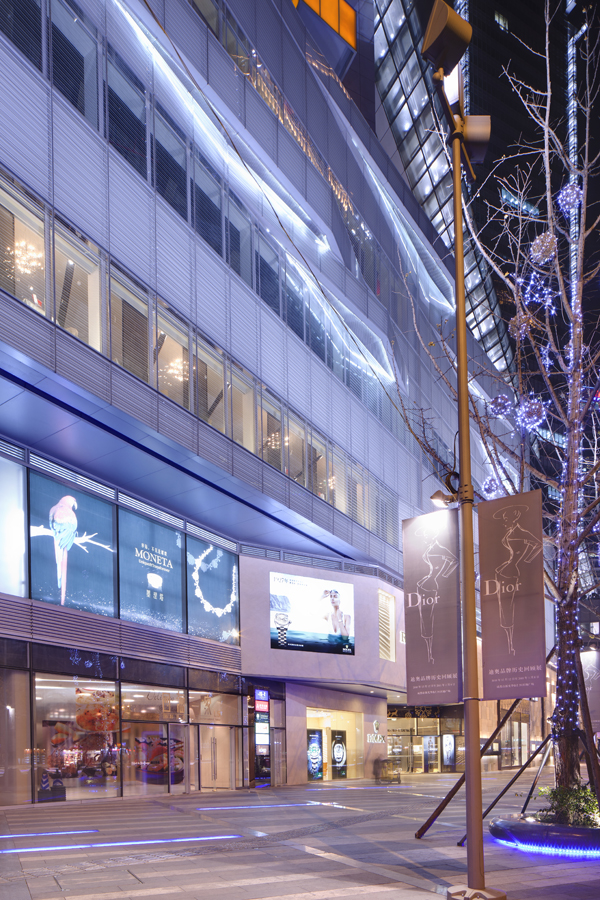

LV专卖店入口处看裙楼沿街面灯光
The light of the annex along the street can be viewed from the entrance of LV franchise shop.

裙楼背面及入口灯光
Back and entrance lighting of the annex

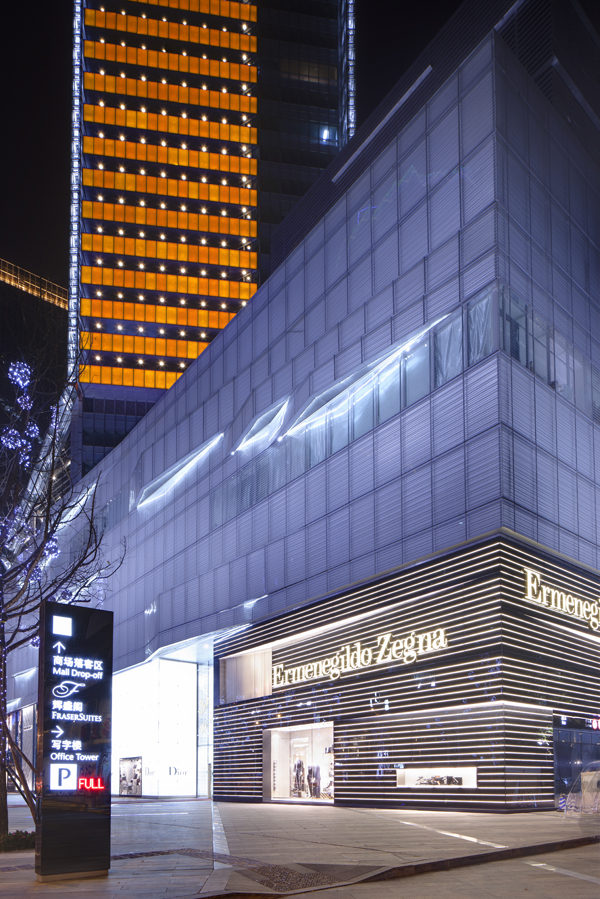

从街道转角处看向裙楼主入口,注意地面上连续蓝色埋地线条灯,和裙楼下部立面照明及入口处下照灯。
Seeing the main entrance of the annex from the corner of the street, the continuous blue underground linear lights in the ground and the façade lighting at the lower part of the annex and the downward illuminators at the entrance should be noted.

地面连续蓝色埋地线条灯,树木照明,裙楼投光灯杆和下照灯,确保广场灯光明亮而有节奏
The continuous blue underground linear lights in the ground, together with the tree lighting, annex floodlight poles and downward illuminators, ensures the bright and rhythmic square lighting.

从十字路口处看建筑裙楼
Seeing the annex of the building from the crossroad


节能
Energy-saving
照明所使用的均为节能灯具,如金卤灯,荧光灯,LED灯
Energy-saving lamps such as metal halogen lamps, fluorescent lamps, LED lamps are adopted for lighting,

预算
Budget
照明设计师要求灯具本地化采购,派驻人员对灯具现场审核和监督,以保证制造商能达到规范设计要求,节省了业主大量的异地采购和进口费用,本建筑建筑面积11万平米,照明安装费用仅为100万美金
The lighting designer requires local procurement of lamps, and on-site persons to verify and supervise the field lamps to make sure the manufacturers can meet the requirements of standard design and substantial costs for non-local procurement and import can be saved for owners. The building area is 110,000m2, but the lighting installation fee is only USD 1 million.


Nocturnal Scene of Tianxing Townlet in Chongqing Jinfo Mount2013-06-07Nocturnal Scene of Tianxing Townlet in Chongqing Jinfo Mountain


The ancient architectural complex of Tianxing Townlet is located in Bashan, a valley at the foot of Jinfo Mountain in Chongqing Municipality. Known for its mists frequent rains at night, Bashan has even become a culture-loaded image since a noted poet of the Tang Dynasty had referred to the place in one of his popular poems. The poem, titled Nocturnal Rain in Bashan, conveys a deep melancholy of a lonely traveler who was far away from his beloved: “Oh, when could we be trimming wicks again, together in your western window? When could I be hearing your voice again, all night in the rain?”
The designer attempts to create an atmosphere full of the poetic feeling by blending illumination and space.
As for specific details, the designer takes the luminance of ground on the day of full-moon as the benchmark. On the basis of that, the concept of mesopic vision is introduced. In this way, people can stand on the best visual position to fully experience the space with all senses being mobilized.
All lamps are LED. 1W LED lamps of various angles are utilized. In other words, the power consumption of the whole town with all lamps on remains at 81KW; in the midnight mode, the consumption is only 3KW. Thus, a real example of high-quality illumination project of extremely low power consumption comes into being.

Photo explanation:
Photo 1: The Tianxing Townlet refers to an ancient architectural complex of almost 1000 years history. It is of typical ancient architecture style in Southwest China. Cornice, pediment, Chiwen (ornament on roof ridge in the shape of a legendary animal), upright and gardens embody intense charms of ancient Chongqing.
Photo 2: The Tianxing Townlet, surrounded by waters and mountains, gives off unique feeling of Chongqing. The adoption of warm color makes the town more genial and heartwarming.
Photo 3: The Tianxing townlet casts itself onto the slate street, tier upon tier after rains. The 3W/m linear lamps and lanterns are hidden by the verandah of the building and the concealed 1W rail façade uplight illuminates the buildings. Meanwhile after multiple reflections, these lights illuminate the interior street.
Photo 4: The linear illuminations of the verandah provides light for the path along the riverside while the illumination of the rail façade serves as the boundary of the platform. All these render a sense of rhythmic beauty.
Photo 5: The plinth of the corridor is lightened up by two 1w narrow LEDs embedded into the upright. Such accent lighting generates great fun.
Photo 6: The gables and herringbone eaves of neighboring architectures are illuminated by 1w underground lamps, rendering a dramatic space. Please pay attention to the specialized installation node of the underground lamps.
Photo 7: The carefully-arranged illumination endows the ancient and classic architecture a sense of freshness and elegance. It is just like a cup of tea, which becomes more appealing if one takes time to enjoy.
Photo 8: It attaches great importance to the integration of the town and the surroundings. The illumination appropriately expresses the layer sense and focus of the architecture and garden. In this way, a more natural and comfortable illumination environment is created.
Photo 9: Chinese style barn lantern is specially designed. Red and yellow LEDs are adopted as the wick. The time order can be controlled to create simulated dynamic flame. The tilting eave and dynamic red barn lantern constitute the essence of architectures in ancient Chongqing.
Photo 10: The average illumination of the street in the town stands at 2 lx, which is able to create a space of mesopic vision. The light emitting surface is meticulously designed so as to avoid glares.
Photo 11: The adoption of illumination to decorate the stream, arch, feature wall and bamboo forest can create a garden of Chinese style, where each step brings us a different view.
